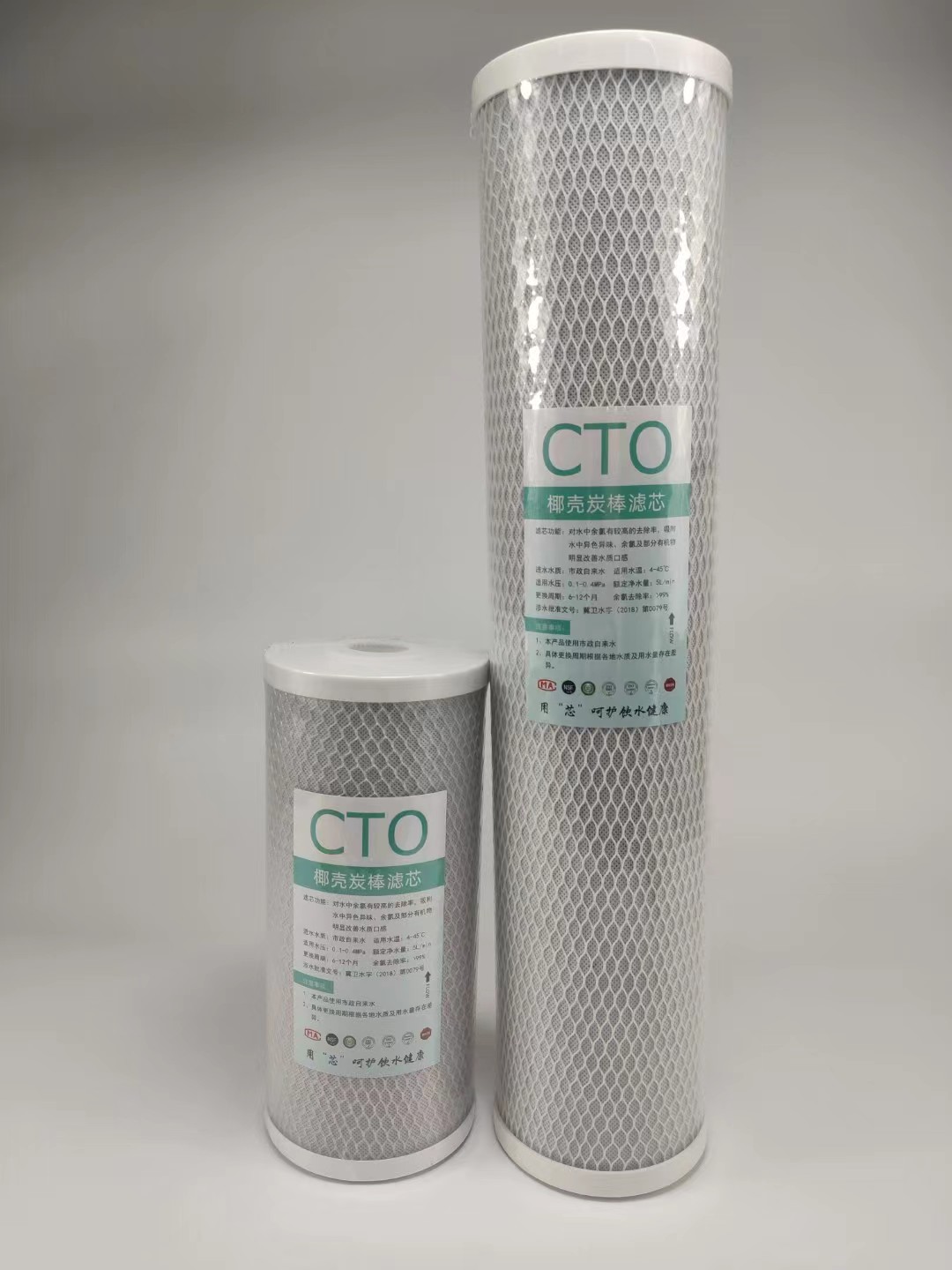

Activated Carbon Block Cartridge Filters

Features & Benefits

High absorbency;

Reduce chlorine, bad taste and odors effectively;

Low pressure drop;

No carbon fines release;

Applications

Drinking water;

Plating liquid;

Food industry;

Industrial water;

Specifications

Filter media: Mineral AC & Coconut shell AC

End cap: PP

Gasket: Buna-N

Netting: Polyethylene

Outer diameter: 70mm, 115mm

Inner diameter: 28mm

Maximun operating temperature: 52℃

Maximum differential pressure: 7 Bar at 20℃

Granular Activated Carbon Cartridge Filters

Features & Benefits

Designed to fill with granular activated carbon media;

Reduce chlorine, bad taste and odors high effectively;

General reduction of bacteria from drinking water;

Engineered to allow water to enter one end and pass through the entire bed of carbon before exiting through the other end;

An internal expansion pad added to minimize channeling or bypass;

A nominal 20 micron PP spun post filter and special spongeis incorporated to reduce carbon fines and other suspended particles;

Applications

Drinking water

Specifications

Filter media: Mineral GAC & Coconut shell GAC

End cap/outer casing: Polystyrene

Expansion pad: Polypropylene

Post filter incorporated: 20 micron PP spun or sponge

Gasket: Buna-N, Santoprene

Netting: Polyethylene

Outer diameter: 70mm, 115mm

Inner diameter: 28mm

Maximun operating temperature: 52℃
